Supermicro UP Storage SuperServer SSG-540P-E1CTR45L SSG-540P-E1CTR45L

Optimised for database applications, backup storage and cold storage.45x Top-loading hot-swap drives. Redundant power supply.

  • Key Applications - Database Applications, Backup Storage, Cold Storage, Data Warehousing, Archiving
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots
  • Intel® Ethernet Controller X550 2x 10GbE RJ45

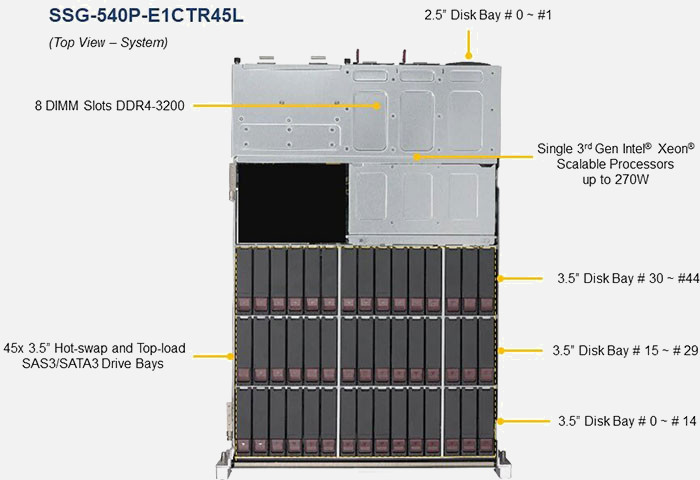

  • 45x Top-loading hot-swap 3.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
  • Redundant Platinum 1600W Power Supply



Loading Configurator...

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 1TB Of RAM

Equipable with up to a massive 1TB of RAM, allowing for fast and efficient multi-tasking for the most demanding applications.

Designed For High Capacity

Designed and optimised for storage, this server is built for high storage capacity. It also features enterprise grade reliability and is ideal if you require a lot of storage space.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro UP Storage SuperServer SSG-540P-E1CTR45L | SSG-540P-E1CTR45L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro UP Storage SuperServer SSG-540P-E1CTR45L | SSG-540P-E1CTR45L can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.


A 4U Supermicro SuperServer based on 1x Intel 3rd Gen Intel Xeon Scalable Processor (X12) range of processors, the Supermicro UP Storage SuperServer SSG-540P-E1CTR45L | SSG-540P-E1CTR45L is configurable with up to 49x Hot-Swap Drives drive bays, and designed for optimal performance with 8x 3200Mhz DDR4 memory sockets .

The Supermicro UP Storage SuperServer SSG-540P-E1CTR45L | SSG-540P-E1CTR45L supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro UP Storage SuperServer SSG-540P-E1CTR45L | SSG-540P-E1CTR45L boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro UP Storage SuperServer SSG-540P-E1CTR45L | SSG-540P-E1CTR45L Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processor (X12)
  • Range: Storage Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 1TB
