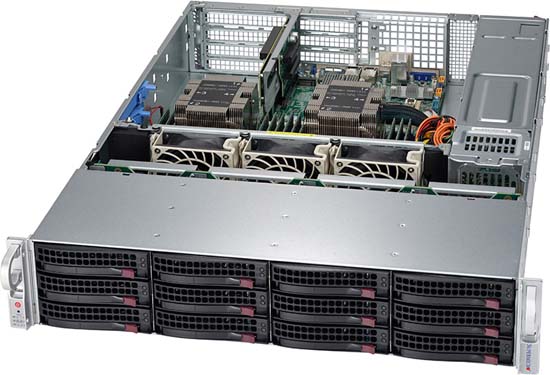

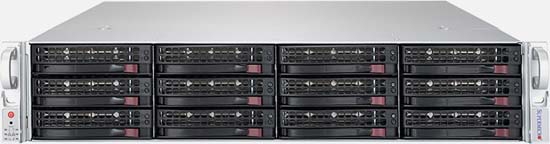

Supermicro SuperServer 6029P-WTRT SYS-6029P-WTRT

Optimised for Compact Network Appliance, Cloud Computing and Web Server use. 12x Hot-swap 3.5" SAS/SATA Drive Bays, 2x 10GBase-T ports. Redundant Power Option.

  • Web Server, Firewall Apps.
  • Corporate-Wins, DNS, Print, Login
  • Gateway, provisioning servers
  • Compact Network Appliance
  • Cloud Computing
  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
  • 1 PCI-E 3.0 x16 (FHHL) slots, 2 PCI-E 3.0 x8 (FHHL) slots, 2 PCI-E 3.0 x8 (LP) slots, 1 PCI-E 3.0 x16 for Add-on-Module, 1 PCI-E M.2 SSD slot
  • 12 Hot-swap 3.5" SAS/SATA drive bays (4 NVMe/SAS3/SATA3 hybrid drive bays)
  • 2x 10GBase-T ports via Intel C622
  • 1 VGA, 4 USB 3.0 (rear)
  • 1200W Redundant Power Supplies Titanium Level (96% Efficiency)



Loading Configurator...

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6029P-WTRT | SYS-6029P-WTRT features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6029P-WTRT | SYS-6029P-WTRT with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Featuring Dual 10GBase-T

The Dual 10GBase-T network adapter provides high performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


A 2U Supermicro SuperServer based on 2x Intel 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SuperServer 6029P-WTRT | SYS-6029P-WTRT is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 12x 3200Mhz DDR4 memory sockets .

The Supermicro SuperServer 6029P-WTRT | SYS-6029P-WTRT supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6029P-WTRT | SYS-6029P-WTRT boasts 7 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6029P-WTRT | SYS-6029P-WTRT Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 1.5TB
